CNC technology coordinates machine movement and cutting parameters according to digital designs, helping produce repeatable shapes and dimensions.

Shipbuilding involves large structures with complex profiles and numerous individual components. CNC cutting systems can support plate preparation, structural fabrication, panel assembly, and other stages where accurately shaped material is required.

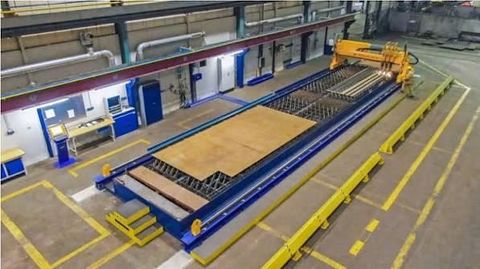

What Are Shipyard CNC Cutting Systems?

Shipyard CNC cutting systems combine computer numerical control with industrial cutting equipment. A digital drawing or cutting program defines the required geometry, while the CNC controller coordinates the movement of the cutting head or tool.

Depending on the machine configuration, cutting systems may process:

• Steel plates
• Stainless steel sheets
• Aluminum plates
• Structural profiles
• Pipes
• Flat bars
• Marine fabrication components

The system can use technologies such as plasma, oxy-fuel, laser, or other thermal cutting methods.

How Shipyard CNC Cutting Systems Work

1. Digital Design Preparation

The process begins with a computer-aided design containing the dimensions and geometry of the required component.

The design is converted into machine-readable cutting instructions. Nesting software can arrange multiple parts on a plate to make effective use of the available material.

2. Material Loading

A steel plate, aluminum sheet, or other workpiece is positioned on the cutting table. Material-handling equipment such as cranes or automated loading systems may be used for large shipbuilding plates.

3. CNC Program Setup

The operator selects the appropriate cutting program and enters parameters such as material type, thickness, cutting speed, and process settings.

4. Material Positioning

The CNC controller directs the machine along programmed X, Y, and sometimes Z axes. The cutting head follows the digital geometry.

5. Cutting

The selected cutting technology generates the required cut. Depending on the material and thickness, the system may use plasma, oxy-fuel, laser, or another process.

6. Part Removal

After cutting, completed parts are removed from the cutting table. They may then move to bending, forming, welding, assembly, or other shipbuilding operations.

Types of Shipyard CNC Cutting Systems

CNC Plasma Cutting Systems

Plasma cutting uses a high-temperature plasma arc to cut electrically conductive materials. CNC plasma machines can process steel, stainless steel, aluminum, and other conductive metals.

They are frequently used for plate cutting and structural components.

CNC Oxy-Fuel Cutting Systems

Oxy-fuel cutting uses a fuel gas and oxygen to heat and cut suitable metals. It is particularly applicable to thicker steel plates.

Multiple cutting torches can sometimes be mounted on a single machine to process several parts or cutting paths.

CNC Laser Cutting Systems

Laser cutting uses a concentrated beam of light to melt, vaporize, or otherwise separate material along the programmed path.

Laser systems can provide narrow cuts and are suited to applications requiring detailed geometries and controlled cutting conditions.

CNC Flame Cutting Systems

Flame cutting systems use controlled combustion and oxygen to cut metal. They can be configured for large-format plate processing commonly encountered in heavy fabrication.

Multi-Process CNC Cutting Systems

Some machines combine different cutting technologies on one platform. This can allow the operator to select a suitable process according to material type and thickness.

Main Components of Shipyard CNC Cutting Systems

Important Cutting Technologies

Plasma Cutting

Plasma systems use an ionized gas stream to create a high-temperature cutting arc. They can cut conductive materials at relatively high speeds.

Oxy-Fuel Cutting

Oxy-fuel systems use controlled combustion and oxygen to cut steel. The process can be used for thick plate applications where appropriate.

Laser Cutting

Laser systems use concentrated optical energy to create precise cuts. They are generally associated with thinner materials and applications requiring detailed geometries.

The appropriate cutting technology depends on material, thickness, required geometry, production conditions, and dimensional requirements.

CNC Software and Automation

Software plays an important role in shipyard CNC cutting. CAD files provide the component geometry, while CAM software converts design information into machine instructions.

Nesting software can arrange multiple parts on a plate while accounting for cutting paths and required spacing.

Modern systems can also incorporate:

• Automatic torch height control
• Collision detection
• Automatic plate alignment
• Cutting parameter libraries
• Production data tracking
• Remote machine monitoring
• Automated material handling

These features can reduce manual intervention and support repeatable production processes.

Applications in Shipbuilding

Hull Plate Cutting

Large steel plates form major sections of ship hulls. CNC systems can cut these plates into specified shapes before forming and assembly.

Structural Components

Frames, stiffeners, brackets, beams, and other structural elements can be cut using CNC equipment.

Deck Components

Deck plates and supporting components can be prepared using programmed cutting operations.

Pipe and Profile Fabrication

Specialized CNC systems can process pipes and structural profiles used in piping and ship framework.

Marine Repair

Shipyards can also use CNC cutting systems for replacement plates, structural repairs, modifications, and maintenance-related fabrication.

Factors Affecting Cutting Performance

Material Type

Steel, stainless steel, aluminum, and other metals respond differently to thermal cutting processes. Material composition influences cutting parameters and equipment selection.

Material Thickness

Thickness strongly affects cutting speed, energy requirements, gas selection, and the appropriate cutting technology.

Part Geometry

Complex shapes may require more detailed CNC programming and specialized cutting-head movement.

Cutting Speed

Cutting speed influences productivity and cut quality. Excessive speed can result in incomplete cutting, while unsuitable low speeds can increase heat input.

Heat Input

Thermal cutting introduces heat into the material. Excessive or uneven heat can contribute to distortion, particularly in thin or large plates.

Quality Control

CNC cutting systems can support dimensional consistency, but inspection remains important.

Quality checks can include:

• Plate dimensions
• Cut geometry
• Edge condition
• Hole diameter
• Angular accuracy
• Distortion
• Surface condition

Measurement tools, optical systems, coordinate measuring equipment, and digital inspection technologies can be used depending on the component requirements.

Maintenance Requirements

Regular maintenance helps maintain machine accuracy and cutting performance.

Cutting heads, torches, nozzles, electrodes, lenses, gas lines, and cables should be inspected according to the cutting technology.

Linear guides, drive systems, racks, bearings, and machine tables should also be checked for wear or contamination. Software, CNC controllers, sensors, and safety systems require appropriate inspection and updates.

Fume extraction systems should be maintained to support effective removal of smoke and airborne particles.

Safety Considerations

CNC cutting involves high temperatures, intense light or radiation, compressed gases, electrical energy, sparks, fumes, and moving machinery.

Appropriate safeguards can include:

• Machine guarding
• Emergency-stop systems
• Gas monitoring where applicable
• Fume extraction
• Fire prevention measures
• Appropriate eye and face protection
• Electrical protection
• Safe material-handling procedures
• Operator training

Laser systems require controls appropriate to their laser classification, while plasma and oxy-fuel systems require safeguards suited to their respective hazards.

FAQs

What are shipyard CNC cutting systems used for?

Shipyard CNC cutting systems are used to cut metal plates, profiles, pipes, brackets, frames, and other components required for shipbuilding and marine fabrication.

What cutting methods are used in shipyards?

Common CNC cutting technologies include plasma, oxy-fuel, laser, and flame cutting. The selection depends on material type, thickness, geometry, and production requirements.

What materials can CNC shipyard cutting systems process?

Depending on the machine, materials can include carbon steel, stainless steel, aluminum, and other metals used in marine fabrication.

How does CNC improve shipyard cutting?

CNC technology follows programmed digital designs and coordinates machine movement automatically. This supports repeatable cutting paths and reduces manual positioning during cutting operations.

How are CNC cutting systems maintained?

Maintenance includes inspection of cutting heads, consumables, drive systems, guides, gas lines, sensors, software, extraction equipment, and safety systems.

Conclusion

Shipyard CNC cutting systems combine digital design, automated machine movement, and thermal cutting technologies to prepare components for ship construction and marine fabrication. Plasma, oxy-fuel, laser, and other cutting methods can be integrated into machines selected according to material type and thickness.

The main system includes a CNC controller, cutting head, machine structure, cutting table, drive mechanisms, software, gas or power systems, and safety equipment. Proper programming, material preparation, quality inspection, preventive maintenance, and operator safety procedures are important for reliable cutting operations.
